Set Up SFTP Chroot Jail using OpenSSH

Introduction

You may want to use one of your existing servers as a SFTP server without subscribing to another EC2 instance. Or you would like to have multiple SFTP users/vendors on a single SFTP server to save on resources and ease of maintenance. In these two scenarios, you will not want the external SFTP users to see or mingle with your server ‘root’ files or browse other user’s home directory. Therefore, one way is to set up chroot jail for each user to their home directory.

Prerequisites

Tutorial is based on Ubuntu 18.04.6 LTS but should work for most Linux distributions
root access because need to edit sshd_config

Step 1 – Edit /etc/ssh/sshd_config

Both sftp-server and internal-sftp are port of OpenSSH. The subsystem internal-sftp simply bind a different file system root on users. Next, add a Match Group section at the bottom where %h is replaced by the path of user home directory (e.g., /home/username). This will add a group for jailed SFTP users, which we will assign in the next step.

# override default of no subsystems
#Subsystem      sftp    /usr/lib/openssh/sftp-server
Subsystem       sftp    internal-sftp

# Example of overriding settings on a per-user basis
#Match User anoncvs
#       X11Forwarding no
#       AllowTcpForwarding no
#       PermitTTY no
#       ForceCommand cvs server

Match Group filetransfer
    ChrootDirectory %h
    X11Forwarding no
    AllowTcpForwarding no
    ForceCommand internal-sftp

Step 2 – Change User and Group Ownership of home directory

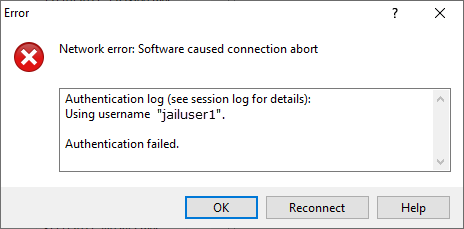

Use the chown command to put the Linux users into the chroot jail group (filetransfer). User ownership must change to root:filetransfer or else /var/log/auth.log: fatal: bad ownership or modes for chroot directory “/home/jailuser1”. Likewise, an FTP client like WinSCP will abort the connection with “Authentication failed.” error message.

$ chown root:filetransfer /home/jailuser1
$ chown root:filetransfer /home/jailuser2
$ ls -l
drwxr-xr-x 7 standarduser       standarduser          4096 Jul 27 16:24 standarduser
drwxr-xr-x 5 root       filetransfer  4096 Jun 27 09:47 jailuser1
drwxr-xr-x 6 root       filetransfer  4096 Dec 21  2021 jailuser2

Step 3 – Change User and Group Ownership of Subdirectories

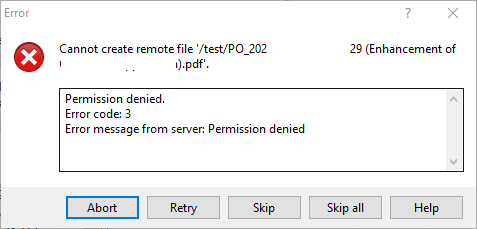

If you connect with WinSCP after Step 2, you will notice that the user is now unable to browse outside his home directory. However, we will encounter “Permission denied” error if we try to upload a sample file to user home directory. To get around this, we create subdirectories (e.g., uploads) in /home/user and update ownership to username:filetransfer or else WinSCP will throw an “Error message from server: Permission denied” error message again if we try to upload a sample file to the subdirectory.

$ ls -l /home/jailuser1
drwxr-xr-x 2 jailuser1 filetransfer 4096 Dec 21  2021 Downloads
drwxr-xr-x 2 jailuser1 filetransfer 4096 Jun 27 09:29 Uploads

WinSCP errors if the wrong User and Group ownership is set.

Conclusion

A SFTP chroot jail allows the server administrator to create a secure directory that confines the SFTP users to specific subdirectories. Therefore, we can easily isolate users from one another and prevent them from browsing the file system. This will work with non-standard SFTP ports such as 2222 and 15722.
